VALVE'S & PART'S fir HYDRAULIC FRACTURING

---

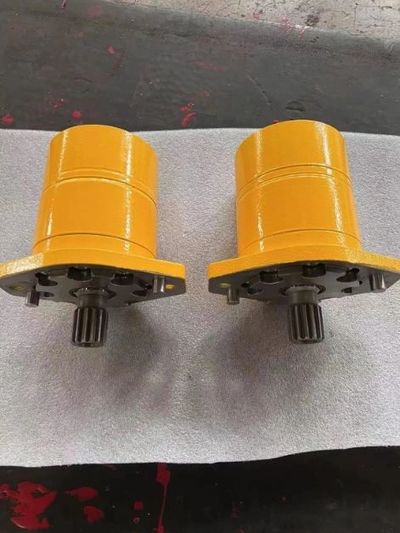

A Hydraulic Shot-Pin Motor is a specialized actuator used primarily in hydraulic fracturing (fracking) and oilfield operations. It combines the power of a hydraulic motor with the precision of a shot-pin locking mechanism, enabling accurate positioning and secure locking of critical rig equipment under high-pressure conditions.

1. Hydraulic Motor
   Converts pressurized hydraulic fluid into mechanical energy to produce either rotational or linear motion, depending on the application.
2. Shot-Pin Mechanism
   A mechanical locking pin that engages or disengages at precise positions to lock equipment in place, preventing unintended movement during operations.


• ✅ Controlled Motion
  Enables precise movement of components such as drilling arms, fluid injectors, and pump mounts.
• ✅ Position Locking
  Secures components firmly once in place, maintaining alignment and structural stability during high-pressure activities.


1. Precision Control

   • Ensures accurate positioning of fracking injectors and proppant delivery systems.
   • Critical for aligning components like drilling heads and pumping systems.


1. Operational Stability & Safety

   • Prevents accidental shifts in equipment that could damage systems or endanger personnel.
   • Essential in maintaining system integrity during volatile pressure cycles.


1. Enhanced Efficiency

   • Reduces the time and labor required for repositioning equipment.
   • Speeds up rig setup and transitions between operational stages.


1. Versatile Application

   • Useful in a wide range of oilfield equipment: from drill string holders to mobile transport locking systems.
   • Supports both fixed and mobile infrastructure.


1. Extreme Durability

   • Engineered for rugged environments with exposure to abrasive materials, pressure shocks, and extreme temperatures.
   • Requires minimal maintenance and offers a long service life.


• 🔩 Drill String & Head Positioning
  Secure and align the drill head during active drilling operations.
• 🚧 Fracking Pump Staging
  Lock fluid and proppant pumps in place to maintain optimal injection angles.
• 📦 Equipment Transport Locking
  Securely fasten containers, skid-mounted units, and tool racks during site relocation.
• 🛠️ Rig Setup & Alignment
  Assist with alignment and stabilization of rig structures during assembly or reconfiguration.


The Hydraulic Shot-Pin Motor is a mission-critical component in modern oilfield operations. By combining motion control with precise locking capabilities, it enhances the safety, accuracy, and efficiency of hydraulic fracturing and drilling workflows.
